Product overview:

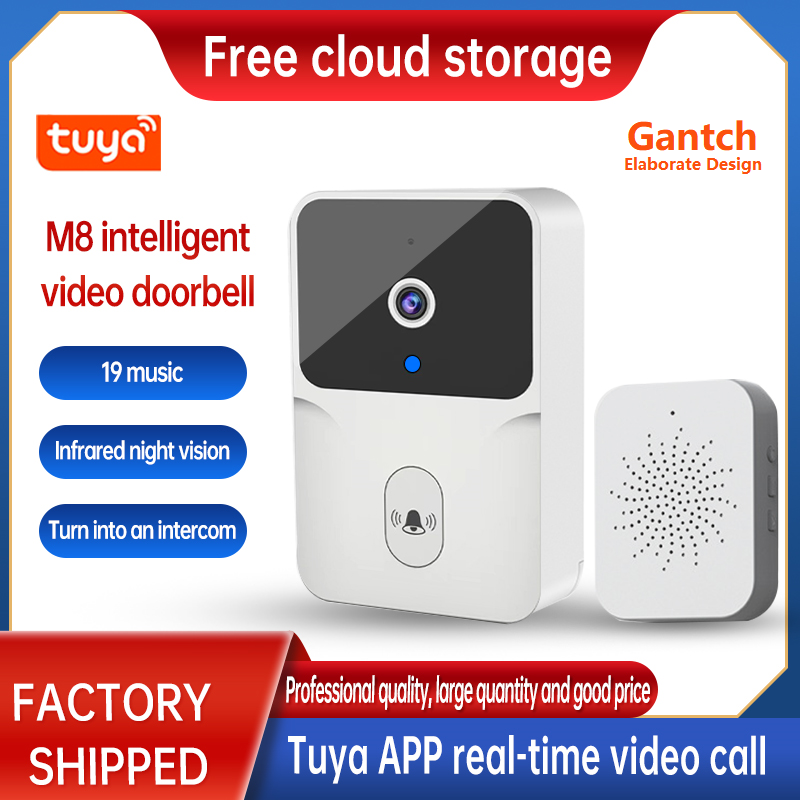

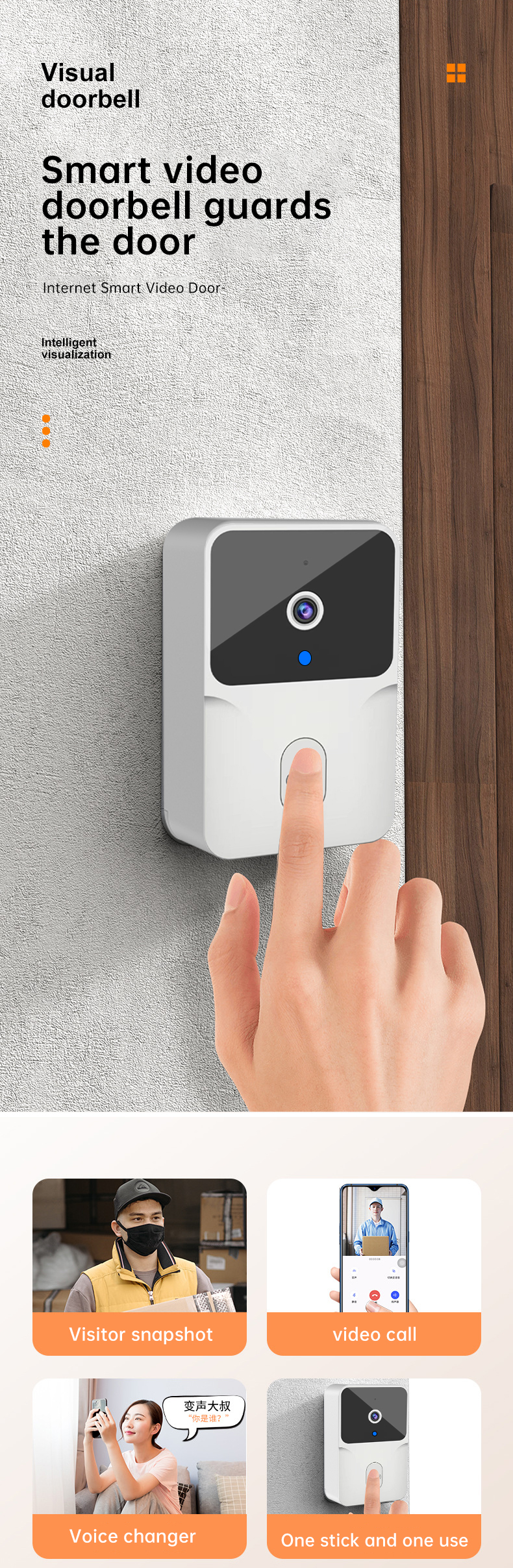

This is a WiFi visual doorbell, which collect music doorbell in one. It supports infrared night vision and remote video intercom, which can make video calls with visitors at the door during the day and night. Support 2.4G WiFi network, no matter whether at home or not, you will not miss any visitors. Our product built-in 1000mah lithium battery, which can be used for about 3 months. No wiring, easy to install。
Product features and advantages:
u Product with Dingdong music box, press to ring
u 19 music optionals, 4-level volume (high, medium, low, mute) optionals
u The doorbell supports 2.4G WiFi

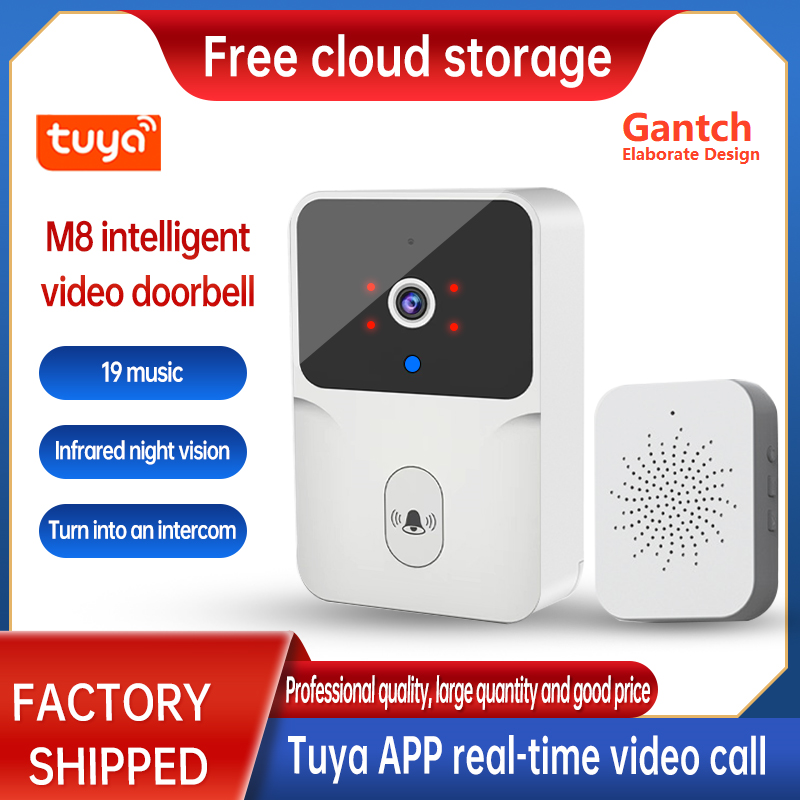

u 4 LED infrared lights, super infrared night vision. No fear of darkness
u 30W security camera, 480P, HD screen。
u Camera viewing angle 80 °

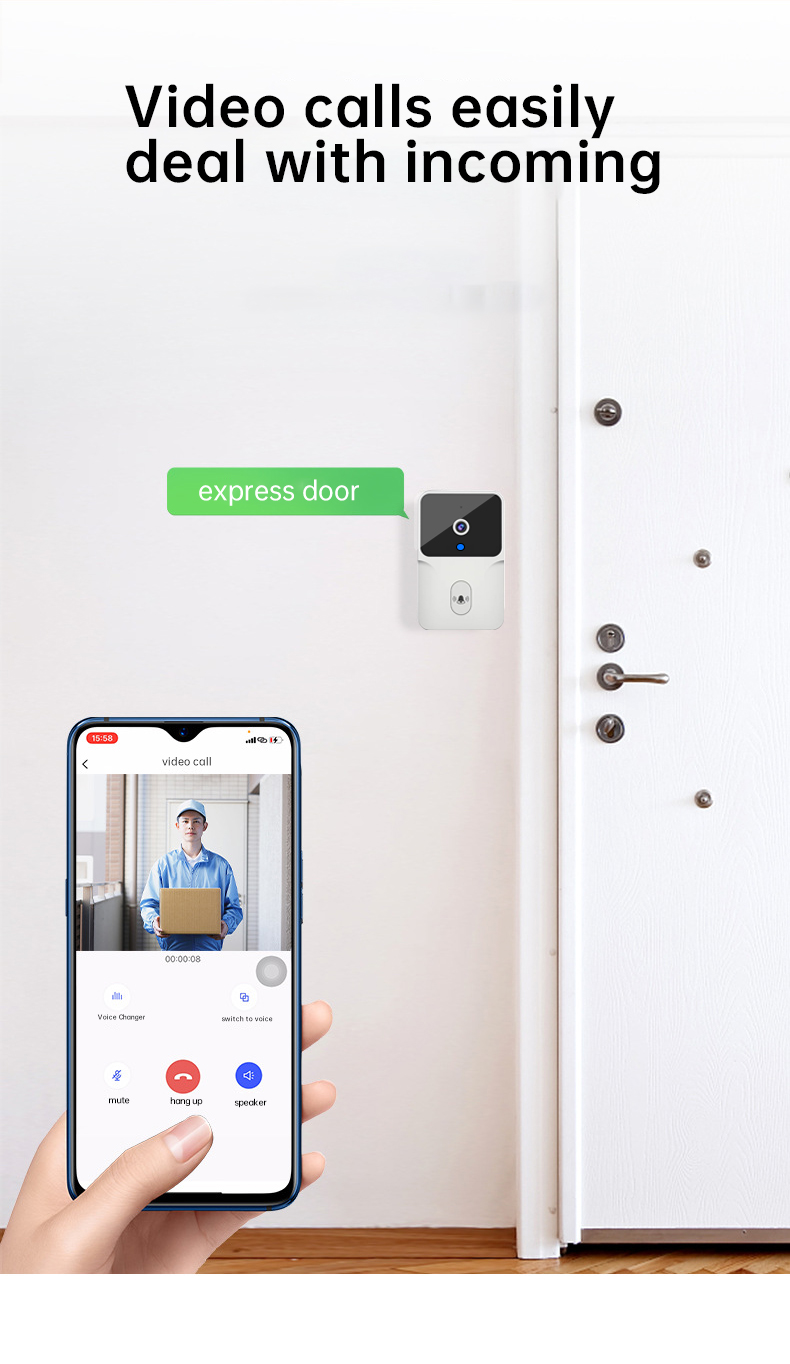

u Two-way voice call, video intercom
u Support voice changing intercom, and make calls interesting and safety

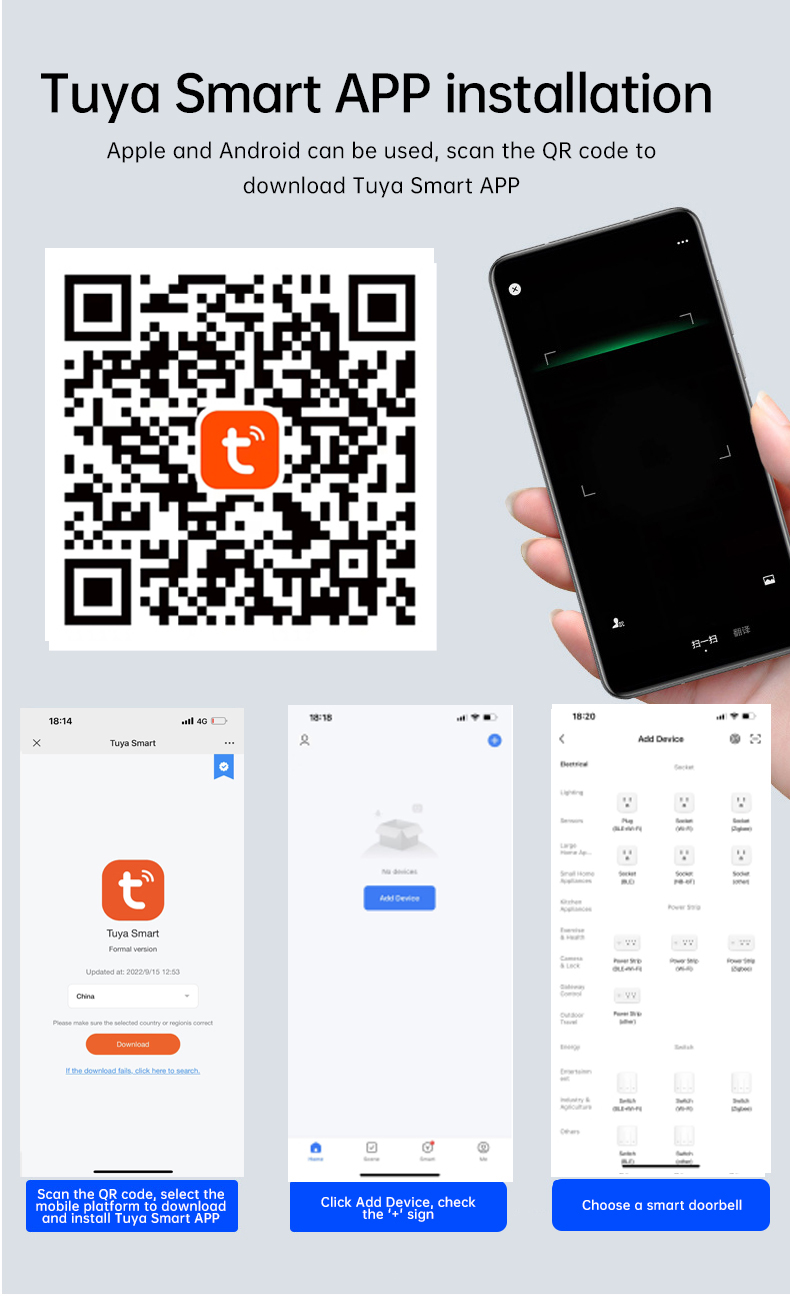

u Tuya app taking photo, taking video, and checking the records
u One way wake-up, press the doorbell to push information, and real-time video intercom。
u Support one APP to connect multiple devices
u Support one device for multiple users
u Support Android & IOS
u Power supply mode: 1000 mah lithium battery, type-C port

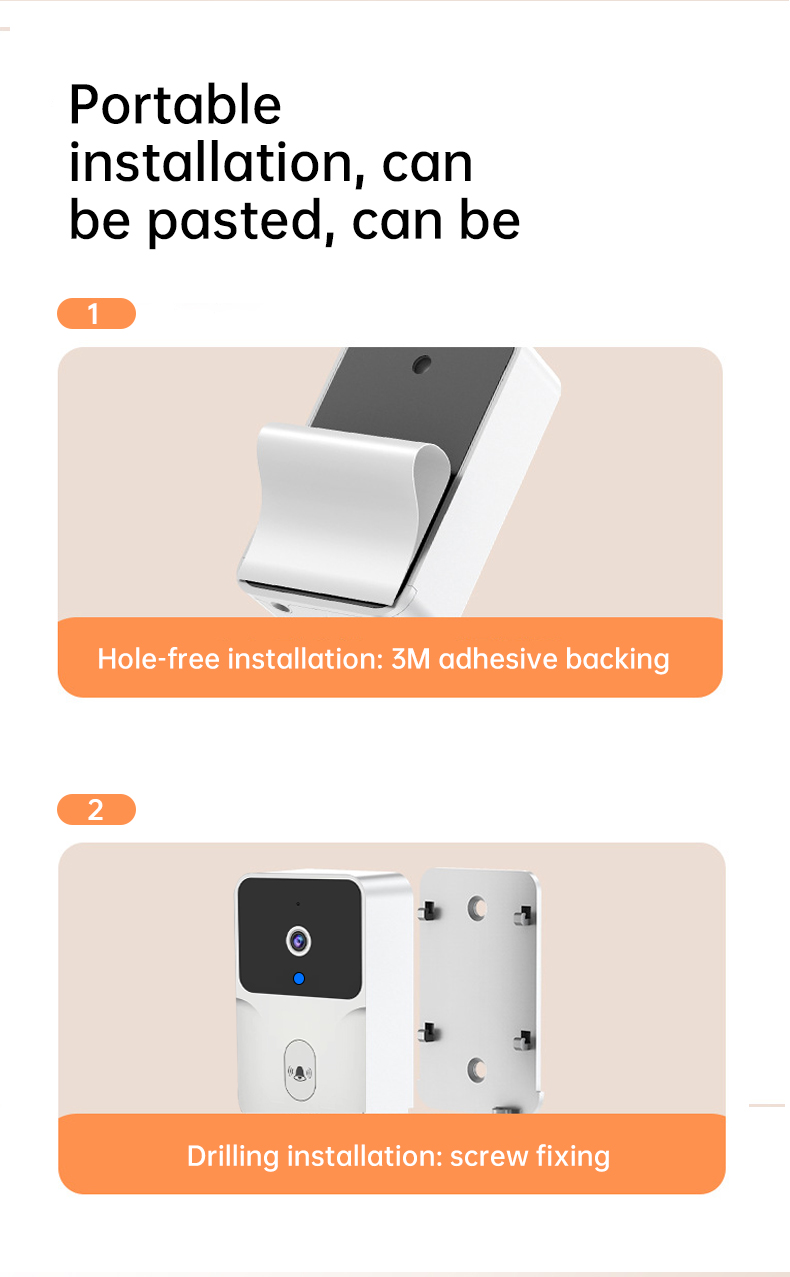

u Screw drilling installation or sticking the back to the door/wall
u No wiring, simple installation, convenient and fast;
Q&A:
Q: What languages are supported
A: According to your mobile phone language
Q: The machine connect wifi fails. Does it support 5G network
A: Only 2.4G wifi is supported, but not support 5G network. The machine must be connected to the 2.4G wifi for the first connection.
Q: The machine cannot power on
A: Please charge the battery in time. The APP can check the battery capacity. When machine LED light turns to red, it means low power.
Q: The machine cannot connect to the network, or it is stuck
A: This is caused by poor network signal. Please check the network. Suggestion: Place the machine near the router or add a router near the machine in order to enhance network signal.
Q: Press the doorbell, the Dingdong music box no response
A:* Check whether Dingdong music box is powered on
* Check whether the Dingdong music box is paired with the doorbell (please refer to the user manual for pairing method)
* Check whether the Dingdong music box is too far away from the doorbell (the open distance is 100 meters, and the distance through the wall is about 30 meters. (Different environment will cause different data.)
A: How long can it be used after full charge
Q: Built-in 1000 mah rechargeable lithium battery can be charged through the type-C port. It can be used for about 3 months after being fully charged (depending on the number of uses, the use of light environment, the network environment and other factors). The standby time is more than 8 months.
Q: Dingdong music box is too loud, or don't like it
A: Ding Dong music box has 19 pieces of music, with 4 levels (high, medium, low, mute) of volume selection, which can be selected according to your own
Technical parameters:
Equipment model | M8 |
Usage scenarios | Indoor/outdoor |
operation system | LiteOS/Linux |
Chip-set | BK7252 |
echo cancellation | Supported |
Sensor type | GC0328 CMOS sensor; |
Effective pixel | 30w,480P |
appearance | ABS |
focal length | 2.0mm |
Diagonal perspective | 80° |
Infrared night vision | support |
Night vision distance | 1 meter is best, and the farthest is 3 meters |
Frame velocity | 7 frames |
Voice intercom | two-way |
Pickup function | Built in microphone, pickup distance 3m |
speaker | 8Ω 0.8W |
motion detection | No support |
Wired network | No support |
Wifi standard | IEEE 802.11 b/g/n |
video coding | JPEG |
Audio coding | G711A |
Video review | No support |
Memory card | No support |
working temperature | Working temperature: - 10~50 ℃, working humidity<95% |
Power supply | DC3.7V 1000Mah lithium battery power supply |
IP | IP55 |
size | 85*53*24MM |
Power line length | 30CM |
Installation method | Punching/gluing |

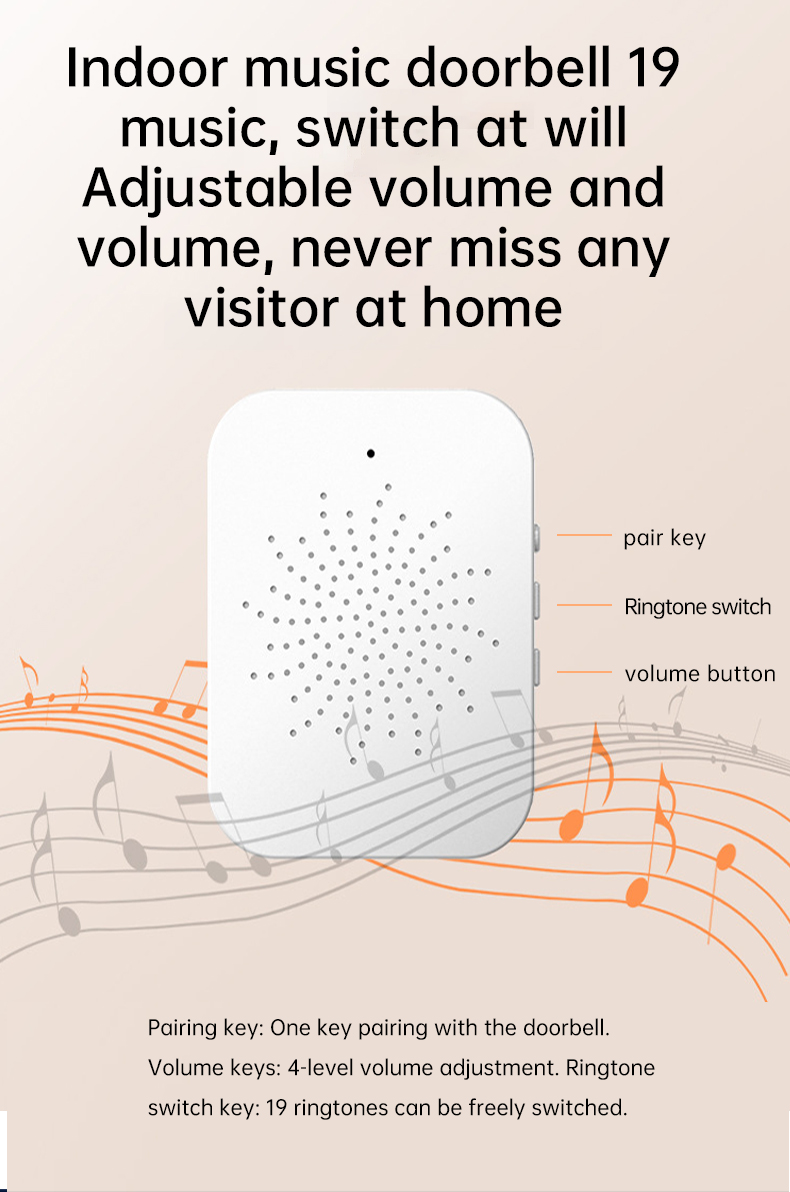

Technical parameters of Dingdong Music Box:
music | 19 songs |
Volume selection | 4-level volume (high, medium, low, mute) optional |
speaker | 8Ω1W |
distance | Open, straight line, 50-60m, through the wall, about 30m |
working temperature | Working temperature: - 10~50 ℃, working humidity<95% |
Power supply | 5V1A |
Maximum operating current | ≦80mA |
Standby current | ≦5mA |
frequency | 433.92MHz |
Transmitting power | 13dBm |
size | 55*42*13MM |
Installation method | USB Plug and Play |
Product accessories:
Doorbell, Dingdong music box, type-C charging cable, screw * 3, rubber plug * 2, instructions, certificate

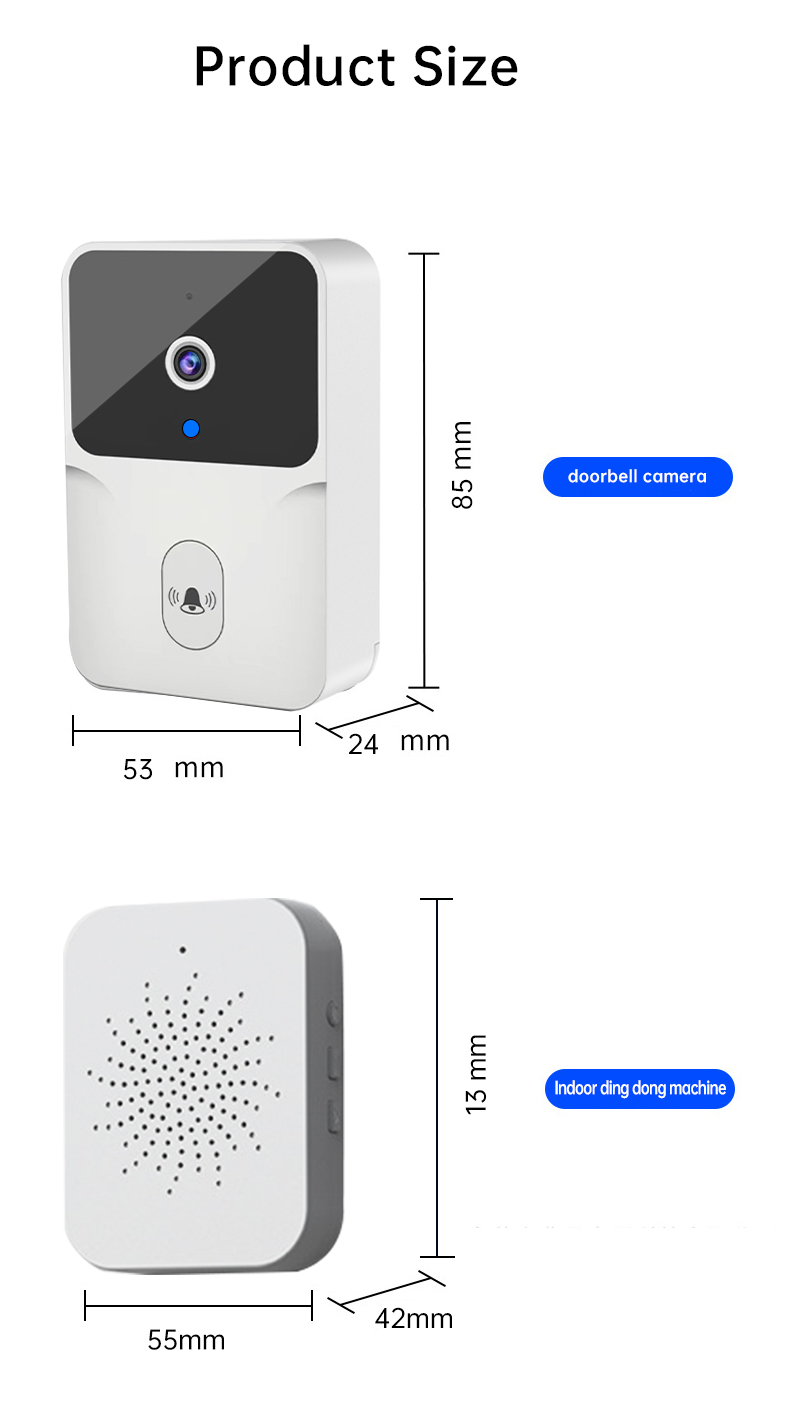

Product size:
Doorbell size: 85 * 53 * 24MM Dingdong size: 55 * 42 * 13MM
Packing size: 139 * 96 * 28MM Packing quantity: 100PS/CTN
Carton size: 50 * 31 * 30.2CM
