Effective pixels: 200W-800W

Sensor :1/2.7 "CMOS 0.1Lux/F1.2(color); 0.01Lux/F1.2(black and white)

Night/night conversion mode :ICR infrared filter and manual mode

Support for monitoring. It is recommended to use analog MIC with diameter of 6mm and SNR of 42DB (national macro).

Compression standard: video compression standard 264+

264+ Encoding type BaseLine Profile/Main Profile/High Profile

The video compression bit rate is 32 Kbps to 2Mbps

Image output: Maximum image size 1920*1080

Image Settings: brightness, contrast, saturation, gain, shutter, white balance and so on adjustable

Mirroring supports horizontal, vertical, and diagonal mirroring

Color to black: Supported

Intelligent alarm: Motion detection

Supported protocols :TCP/IP, DHCP, HTTP, HTTPS NTP, DNS, RTP RTSP

Interface protocol :ONVIF

Platform connection: The built-in powerful P2P function can flexibly realize remote monitoring

Common features: One - click recovery, double - stream, heartbeat, mirror, video mask, anonymous access and more.

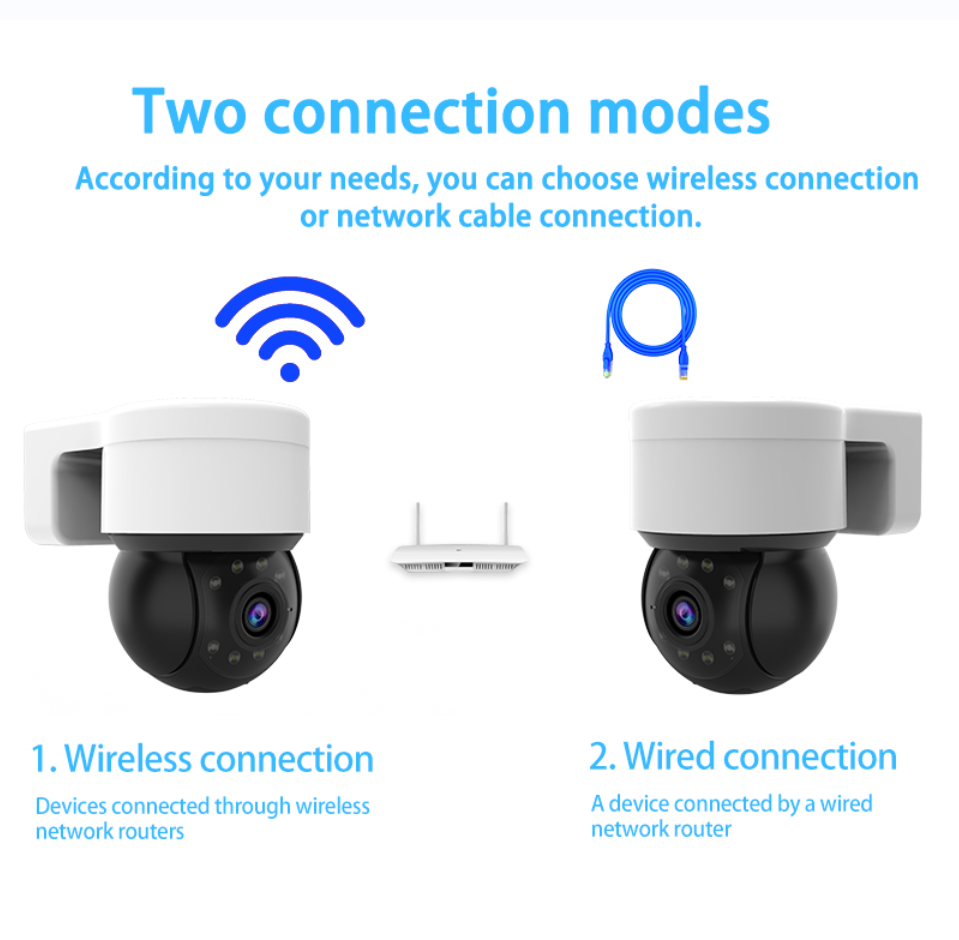

Communication port :1 RJ45 10M / 100M adaptive Ethernet port

WIFI port external 2.4G Wi-Fi antenna

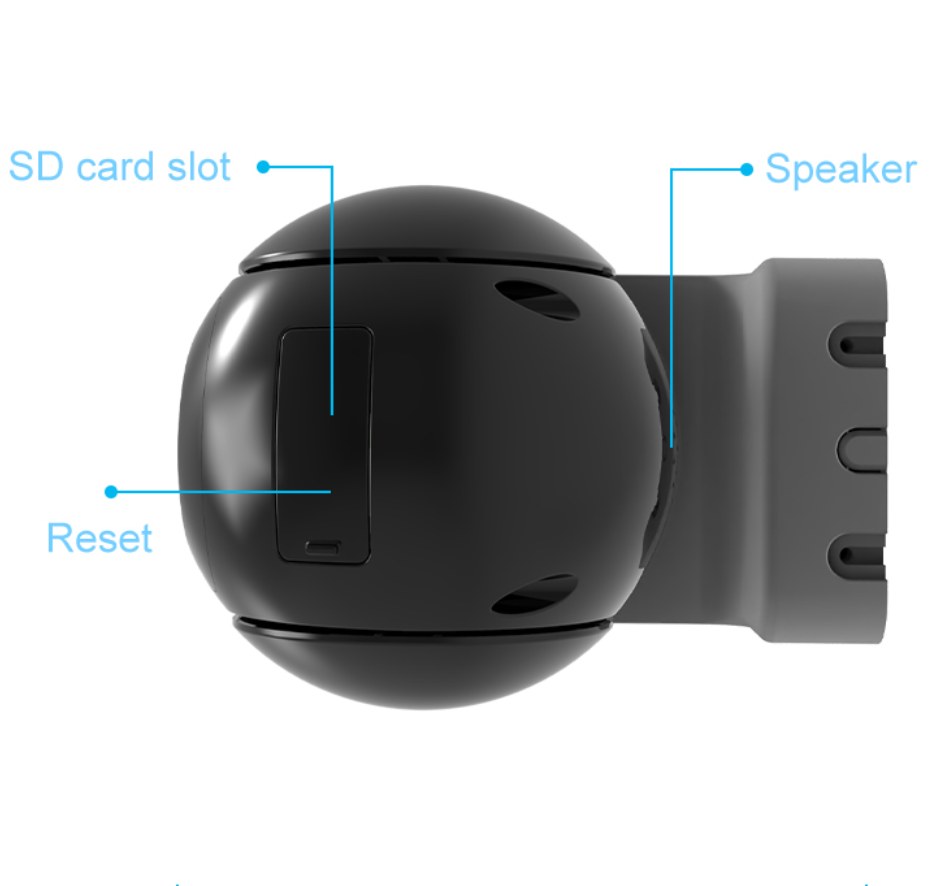

MicroSd (TF) card type, maximum 128G (optional)

Reset button Interface support

• Color box: 193*186*107mm




  Outer box: 565*406*585mm
