Multi-functional and multi-variable, personalized and user-friendly simple design and fast to use.

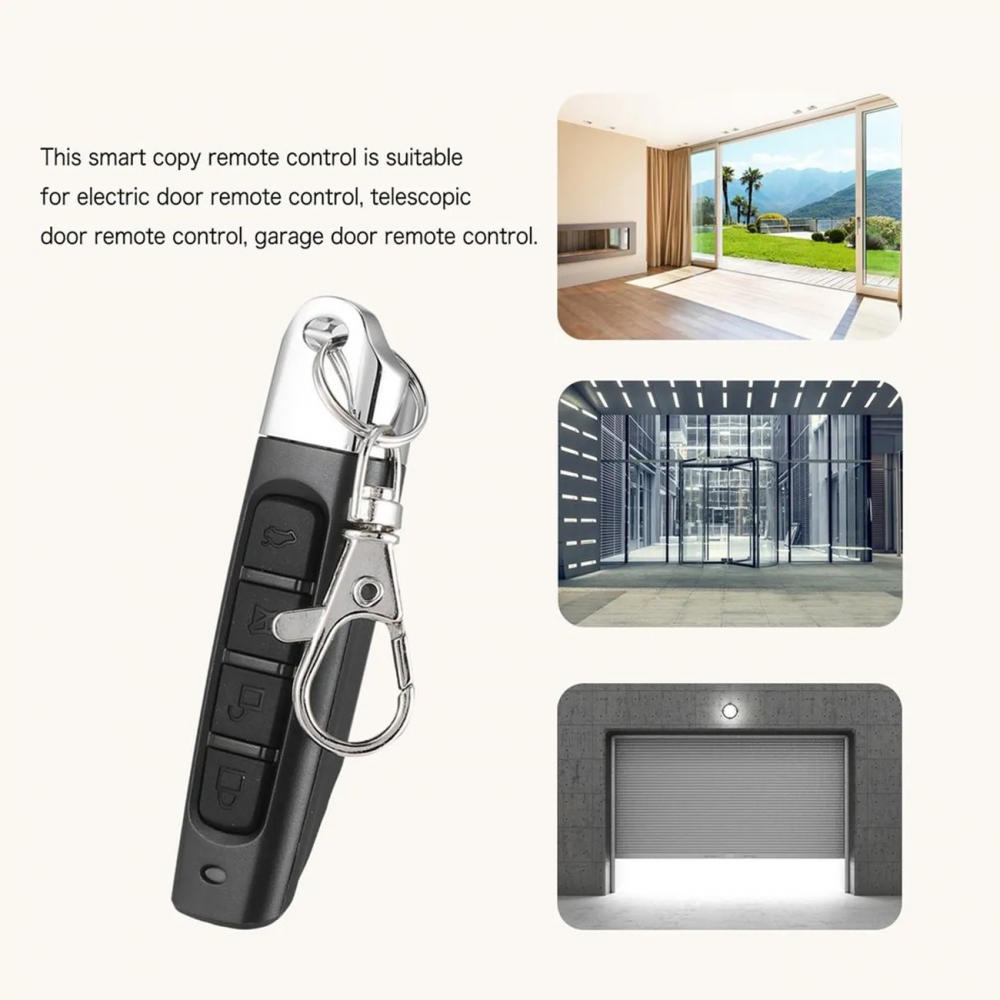

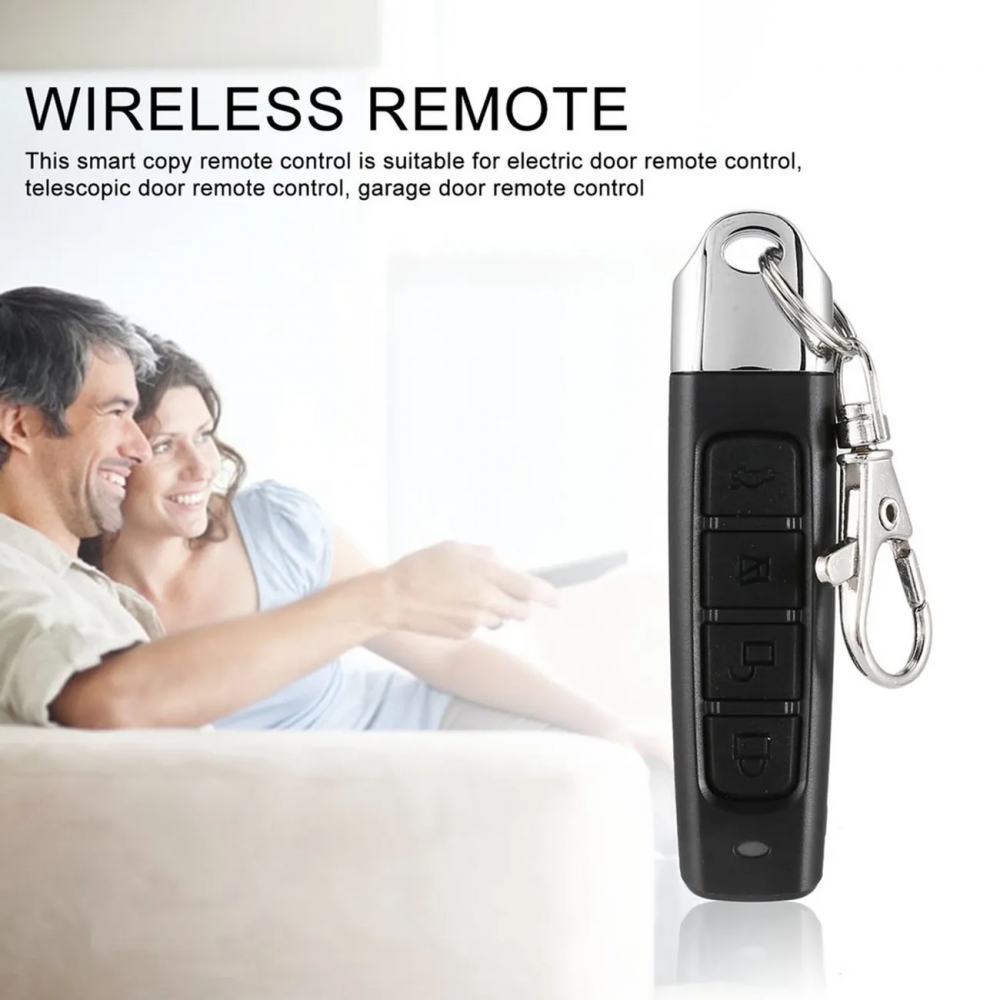

This smart copy remote control is optional for electric door remote control, telephoto door remote control, garage door remote control.

Description:

Material: Plastic.

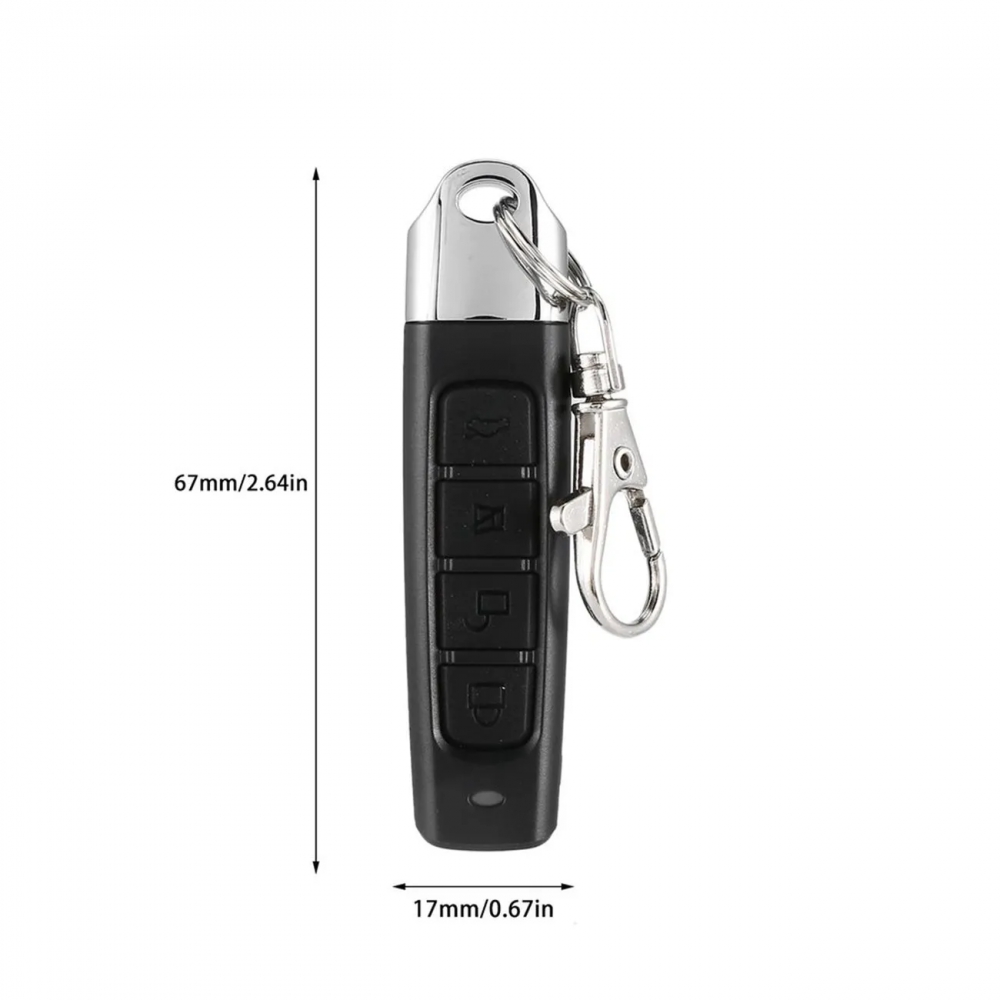

Size: 60*36*12mm.

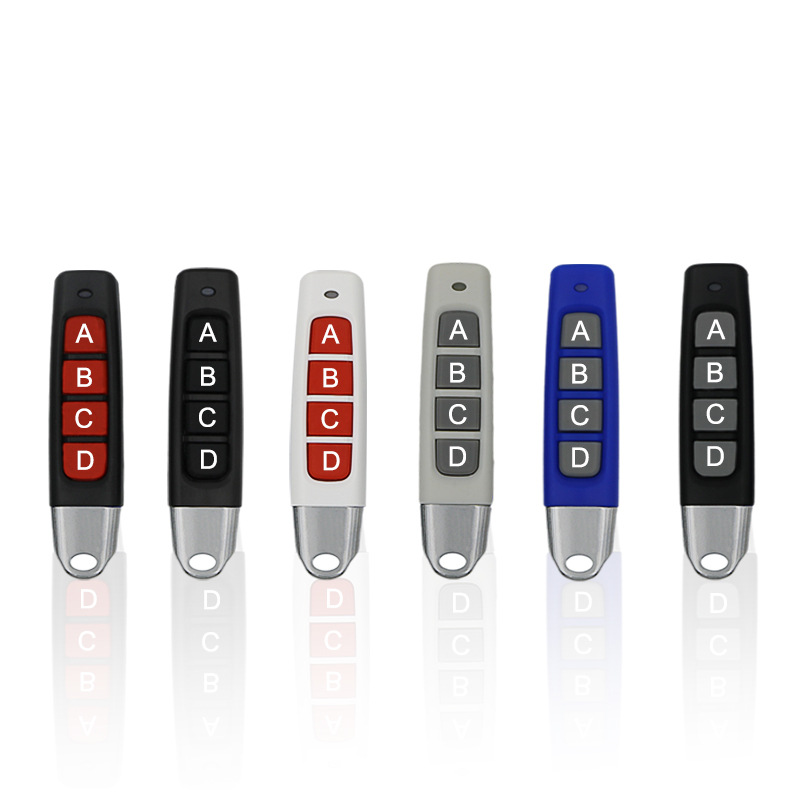

Color: As pictures show.

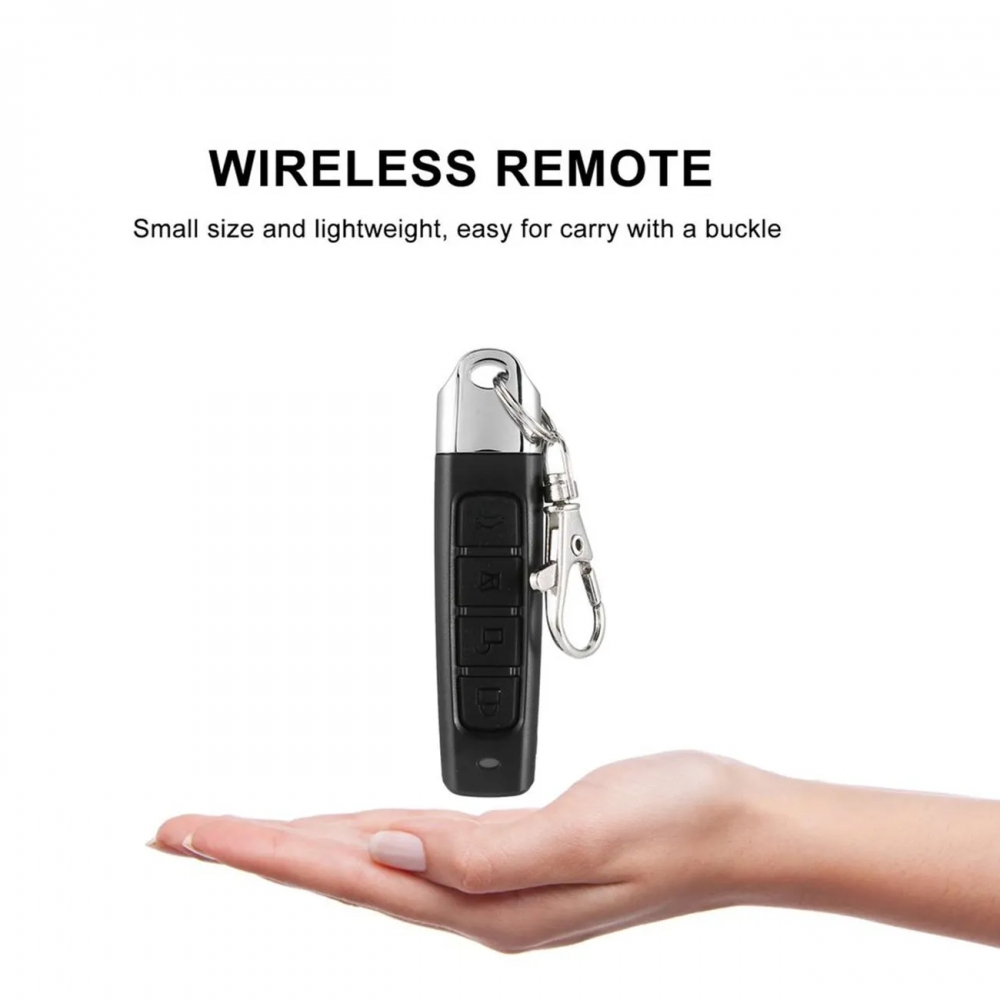

Type: Wireless remote.

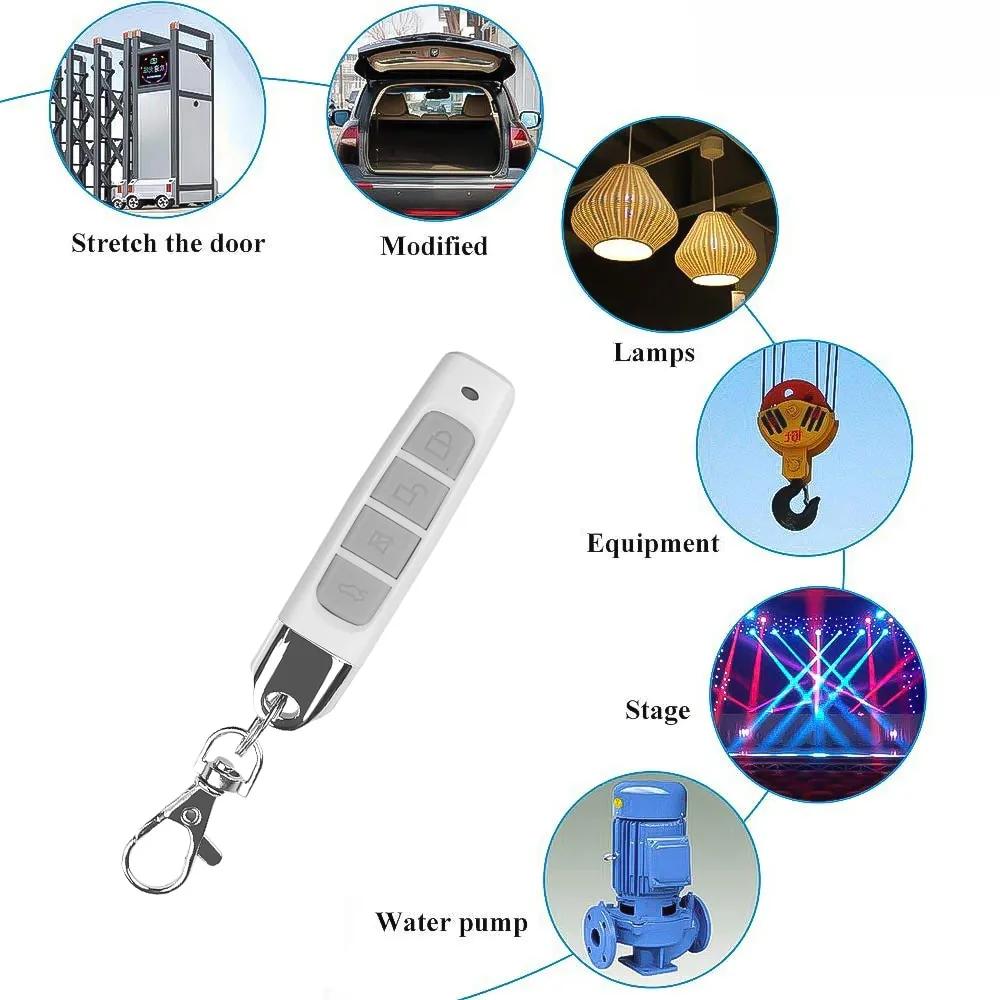

For: Such as electric telephoto door remote control, road gate remote control, arm remote control and so on.
Rated volume: 12V Battery.

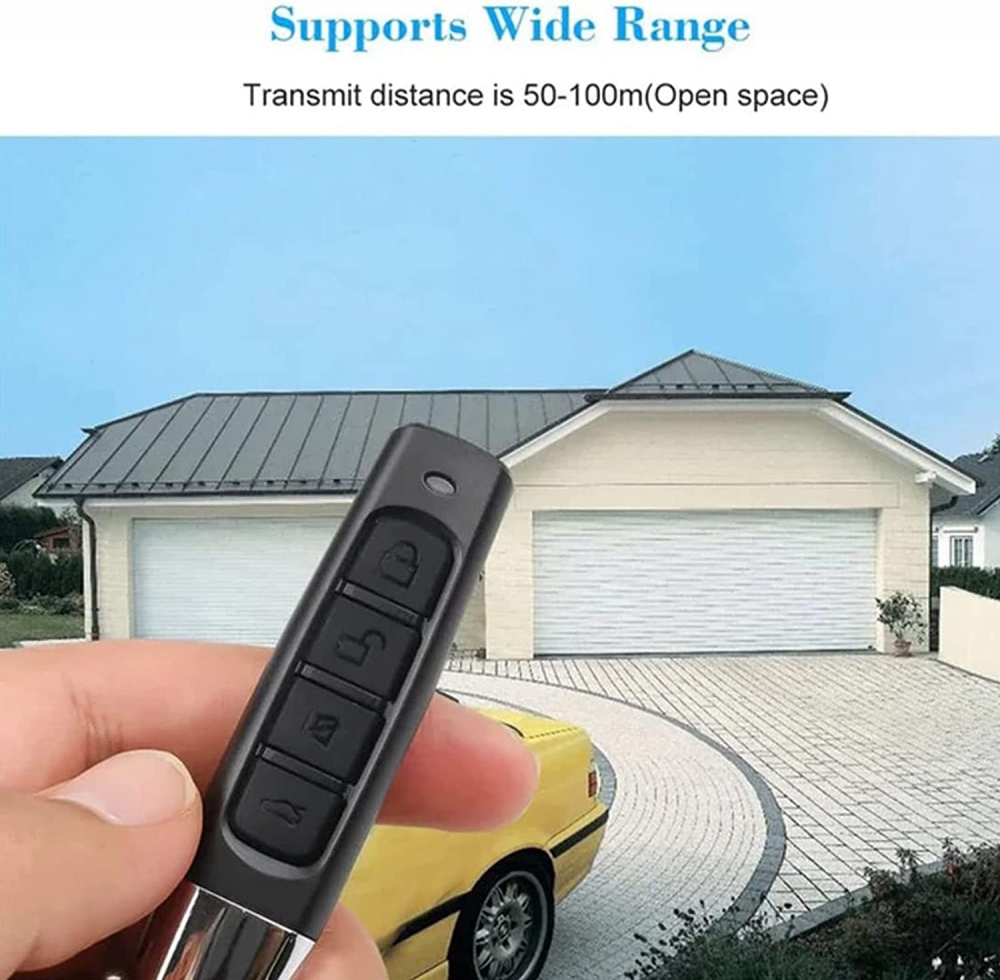

Wireless transition distance: 50-150 (m). (open space)

product description

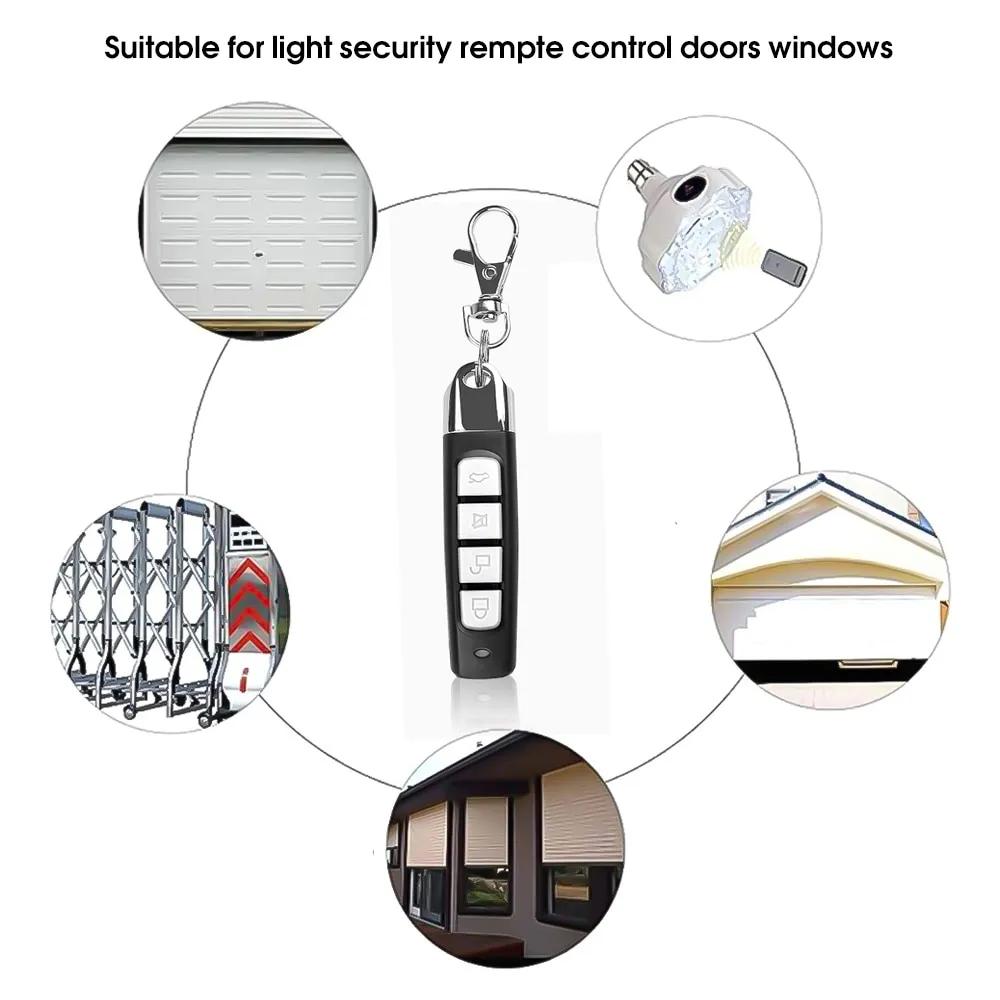

Range of use: duplication and regeneration of wireless remote controls such as barriers, garage doors, car doors
/motorcycle doors, etc.
The scope of application of the copy remote control: Ordinary fixed code (chip type 2260, 2262, 2264), learning code (1527, 2240) remote control.

Copyable model:
1. PT2242. 2. PT2260. 3. PT2262. 4. EV1527. 5. 527. 6. PT2240. 7. SMC918. 8. HT-12E. 9. AX5326-3.10.AX5326-4 11.AX5026. 12. HT600 13. HT680.14. HT6207. 15. HT6010. 16. HT6012. 17. HT6014. 18. MC145026. 19. HT640. 20. SMC926. 21. HT12D and other fixed code and learning code wireless remote control.

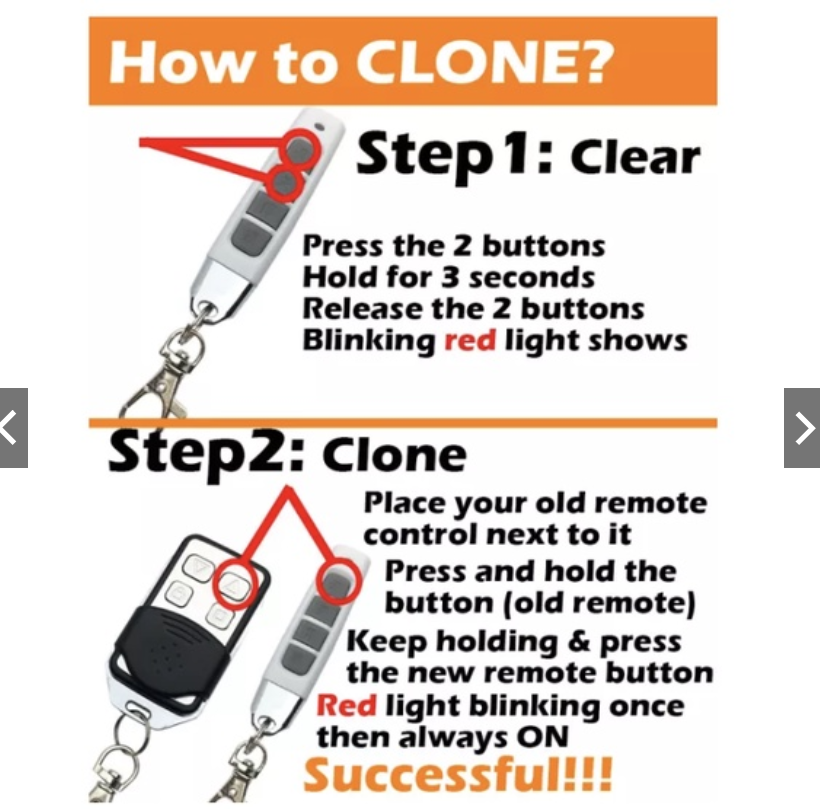

Clear code method:
Press and hold the lock and unlock buttons at the same time when the LED indicator flashes 3 times, then release the right hand (don't let go of the left hand), press the right button three times in succession with your right hand, and see the indicator flashing continuously , The clear function is completed, which means that all the key storage data is cleared.

After clearing the code, you can use the following operations to restore the last used data before copying the new data. When pressing the two buttons on the remote control at the same time, wait for three seconds to see the L ED indicator blinking and the data recovery function is complete, which means that all data is restored by pressing the.

Copy:
After the code is cleared, put the remote control to be copied and the remote control on the same desktop. Close together, press and hold the button to be copied and the remote control button at the same time, after seeing the indicator light flashing five times, Then it is always on, it proves that the copy is successful.

Precautions:
1. When copying, the distance between the copy remote control and the copied remote control cannot be very far. A long distance will result in incomplete data copy, and large copy oscillation resistance error. When copying, the copy remote control should be as close as possible to the copied remote control. Although this copy remote control achieves high field strength reception, this is to infinitely reduce copy data errors and oscillation resistance errors, and improve copy accuracy.

2. Do not place the remote control on a metal surface to copy, as this will reduce the copy distance and the accuracy of the copy parameters.
3. Try not to copy when the battery power is low, which will affect the accuracy of the copy to a certain extent.
4. When copying, try not to hold it in your hand, and place it on the table for close operation.
5. Do not open the remote control at will, and do not store or use the remote control in high temperature, high pressure, and high humidity environments.

6. When replacing the battery, please install the battery polarity correctly.

Use steps:
1. clear code: two Boots at the same time hold the unlock key and lock key; the LED light lightning flash 3 times in about 2 seconds; let one of the sellers go (the other hand and cannot go), and then use the lost finger to quick click three times on the lost button until the LED light flash quickly; the two buyers can release; then press any one key of the remote control; when LED light doors off, it means clear code is successful ); if after you press any button of the remote control, the light is still on, it indicators that the original code has not been clear. you need to re-clear, and only successful clear the code can close be successful. you can repeat clear and clone the code.
2. copy: left hand shopping the original remote control, right hand shopping close remote control and keep two remote control as close as possible; press the first keys of two remote controls at the same time; in about 2 seconds, the LED light will flash fast 2 times; after one second, the indicator light keeps flash and let go of your boots; and then press the key after success Studies, the light keeps on, which means that the first key code on original remote control has been tied to the other remote control; the same method can be used in turn on the second key, the third key... if the copy is successful, the remote control function is the same as the original matching remote control.
3. store: When you are sure to clear the copy of the remote control code, you can simulate the copy of the remote control of the bottom two keys, LED lights will flash quickly, let go after pressing any key, light long, this indicator that the code for the remote control is restored. before using our copy remote control, please be sure to remove the existing code from the remote control.
4. How to deal with the situation where some of the keys can control, the rest cannot control? You can use clear and restore operation, the specific operation is as follows:
(1) first clear code;
(2) after clearing code, copy the successful key again, and there is no need to copy the rest buttons;
(3) and then clear the code again;
(4) store code; at this time, the original keys that were not successful. if there is no copy after the second copy of the keys, repeat the above steps again and again until all keys are successful.

causes:

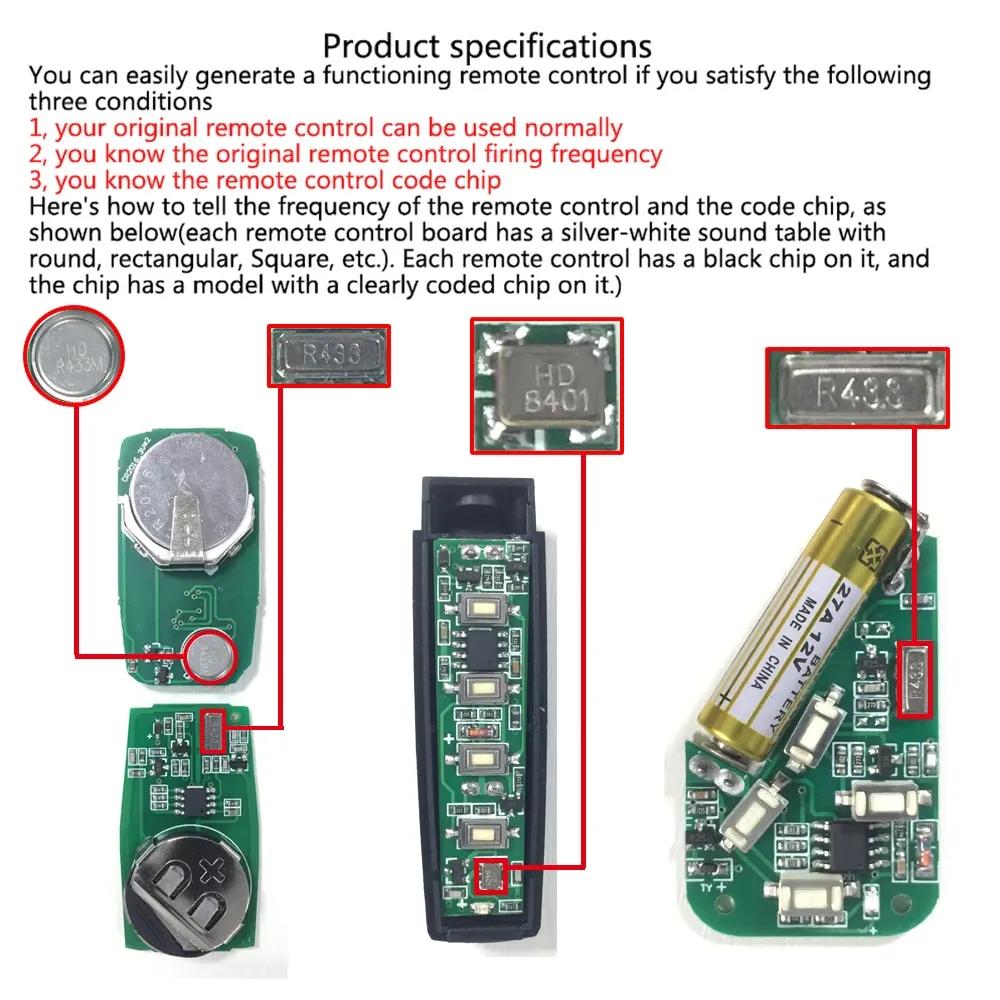

1. select the remote control of the Prairie equal: the original remote control function is normal, remote control chip is the same or compatible, remote control operation frequency the same.
2. the remote control can only copy the fixed code, learn the code chip and part of the single-chip remote control (can copy the chip model see copyable chip type ).
3. two-way remote control, rolling code remote control, single-chip encryption program remote control cannot be tied. such as HCS200, HCS201, HCS300, HCS301 and so on.
4. before copying the remote control, make sure that the existing code on the remote control has been clear and checked that the code is clear. otherwise, it cannot be made.
5. Please feel that your remote control has enough power, the distance between the two remote control the better! If the copy distance is too close to the switch at different angles to copy. press and hold the button on the original remote control to send the signal complete normal, and then press the button on the remote control to secure that the function is complete.

Package protected:
1*433 MHZ remote control duplicator.

Notes:
1. Please allow 1-3mm differs to manual measurement.
2. duo to the difference display and difference light, the picture may not show the actual color of the item. thanks for your understanding.
