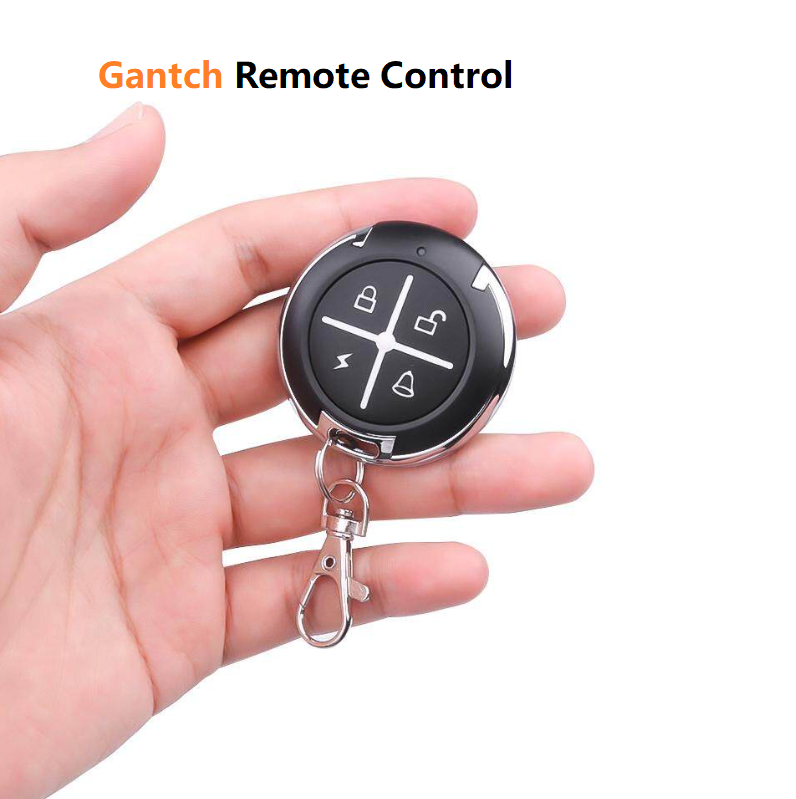

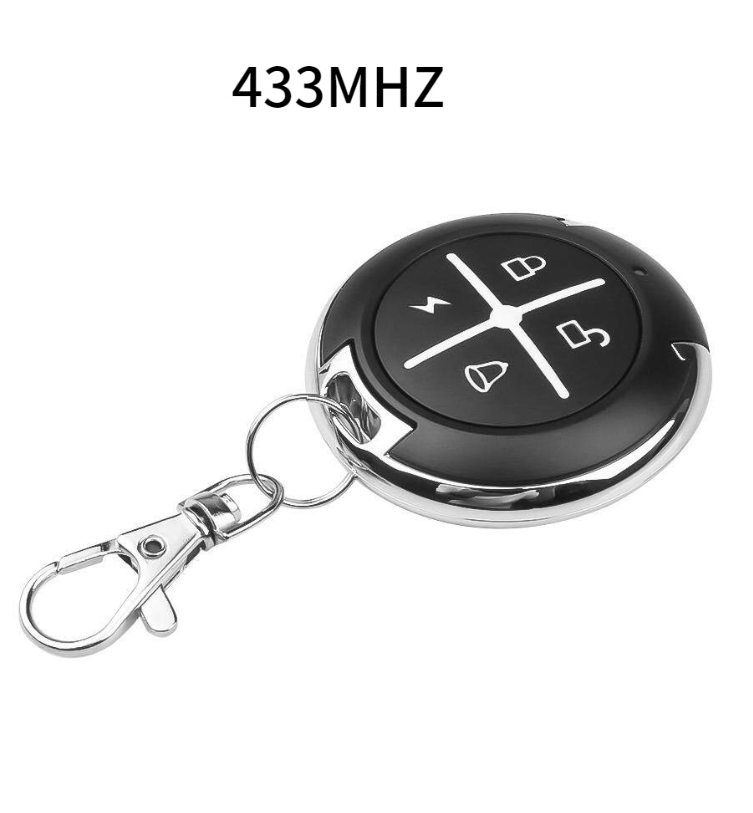

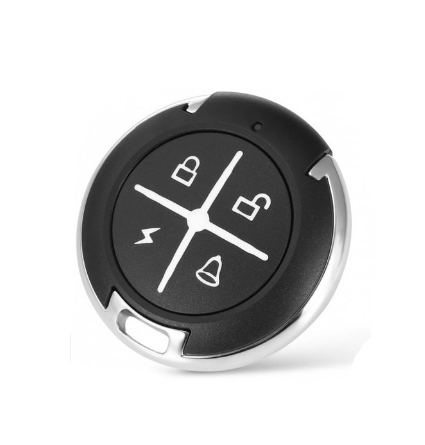

433MHz auto gate remote control Key chain round garage door copy remote control four key wireless remote control car door

Universal Garage 433MHz Door Opener Remote Control Car Alarm Cloning Duplicator Lock for Home Security

Remote Control Key Fob

  4 Buttons Cloning Wireless Remote Control Key Fob 433mhz for Car Garage Door Gate Skylight

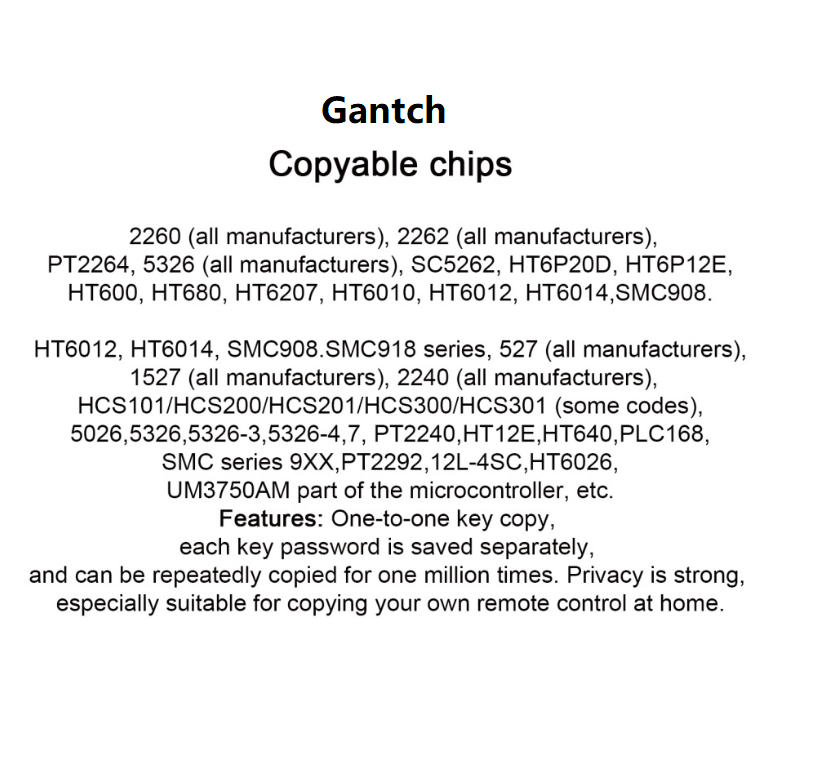

       Supported IC CODE: 222660 (for example, PT222660, SC2260, HS222660 LX2260, HS2260 LX2260, HX2260, HX2260, etc.); 2262 (for example, PT2262, SC2262, HS2262, HX2262, HX2262, HX2262, etc), PT2264, PT222240 (LX2240 LX2241 SCL2240), S5211,1527（EV1527, HS1527, HX1527, SC1527, GP1527, CP1527, AD1527, SCL1527, TL1527, ZX1527, SMC918, AX5026, SMC926, AX5326-3, AX5326-4, FP527, HT600, HT680, HT6207, HT6010, HT6012, HT6013, HT6014, ,Codes with the same suffix, such as SC2262 and PT2262

Key chain round garage door copying four keys of remote control433MHZWireless remote control Car door

type: Remote control

Rated voltage: 6(V)

Rated current: 12(mA)

Installation mode: Torture/Copy/copy

weight: 35(g)

Scope of application: It can copy all kinds of wireless fixed code remote controller and learning code remote controller. Partial scrolling,Such as electric telescopic door remote control, elevator remote control, alarm remote control

Dimensions: 50*50*17(mm)

Wireless transmitting distance: 150(m)

 frequency: 433MHZ

Application range:

 Remote control is widely used, mainly used for remote control of some cars.Remote control electric retractable door, elevator, remote control barrier stop, remote control rolling shutter door, garage door, translation door, remote control LED Lights

Remote control fireworks igniter, remote control bus door, anti-theft alarm, electric door alarmMP3Motorcycle burglar alarm, etc

How To Use:

1. Clear Data: Press the upper two buttons at the same time, let go when the LED indicator starts to flash; after the clear is successful, the LED light will flash once every time you press the button and then go out.

2. One-to-one Copy: Press the buttons of both at the same time, (press the copy remote control with one hand, press the original remote control with the other hand), when the indicator light of the copy remote control is always on, it means the code matching is successful. The other buttons also operate like this.

3. Data Recovery: Press the below two buttons at the same time, the LED light returns to the normal state, and the recovery is successful.
